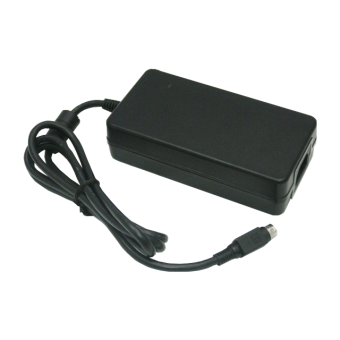

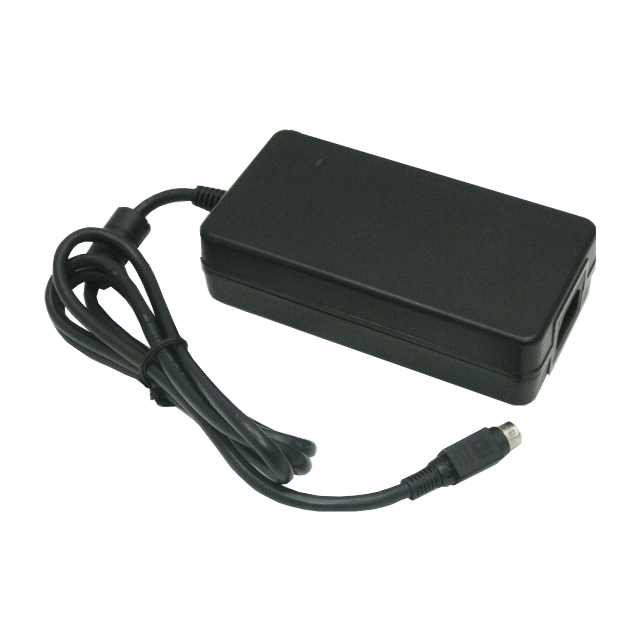

PMP105 SERIES Медицинский блок питания

Model

Output

Average Active

Efficiency (typical)

@ 115 / 230 Vac

Class I

Class II

V1

Imax.

Peak

Current

Ripple & Noise

Max.

Power

PMP105-12

PMP105SF-12

12 V

7.50 A

15.00 A

120 mV

  90 W

87 /87%

PMP105-12-1

PMP105SF-12-1

13 V

6.93 A

13.80 A

130 mV

  90 W

87 /87%

PMP105-13

PMP105SF-13

14 -16 V

6.79 A

13.58 A

150 mV

  95 W

87 /88%

PMP105-13-1

PMP105SF-13-1

18 -19 V

5.84 A

11.60 A

180 mV

 105 W

88 /88%

PMP105-13-3

PMP105SF-13-3

20 -21 V

5.25 A

10.50 A

200 mV

 105 W

88 /89%

PMP105-14

PMP105SF-14

24 -25 V

4.38 A

8.70 A

240 mV

 105 W

88 /89%

PMP105-15

PMP105SF-15

28 -29 V

3.75 A

4.50 A

280 mV

 105 W

88 /89%

PMP105-16

PMP105SF-16

30 -32 V

3.50 A

4.20 A

300 mV

 105 W

88 /89%

PMP105-17

PMP105SF-17

36 -38 V

2.92 A

3.50 A

360 mV

 105 W

89 /90%

PMP105-18

PMP105SF-18

46 -50 V

2.29 A

2.70 A

480 mV

 105 W

 90 /91%
