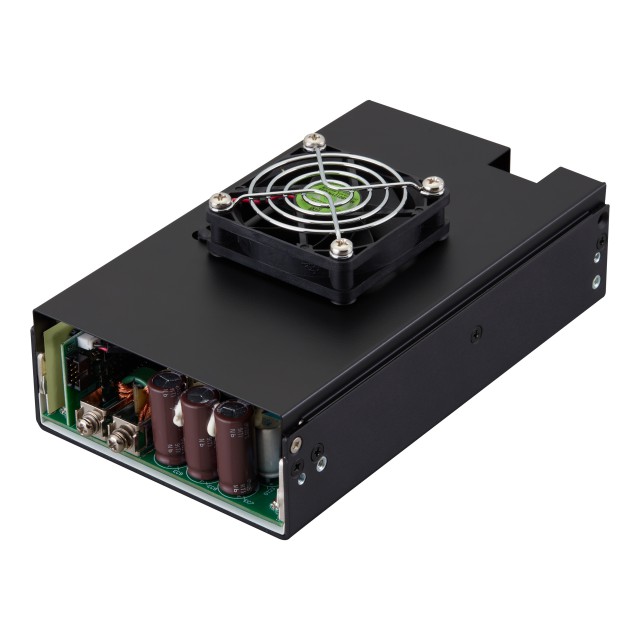

PM500F SERIES Медицинские блоки питания

Model

Output

Efficiency

(typical)

115 /230 Vac

Class II

V1

Min.

Current

Max. Current

at convection

Max. Current

at 30 CFM

Tol.

Ripple & Noise

Max. Output Power

PM500F-12A

12 V

0 A

20.83 A

37.50 A

±2%

120 mV

250 W /450 W

89 /91%

PM500F-13A

15 V

0 A

16.67 A

30.00 A

±2%

150 mV

250 W /450 W

89 /91%

PM500F-13-1A

18 V

0 A

13.89 A

27.78 A

±2%

180 mV

250 W /500 W

89 /91%

PM500F-14A

24 V

0 A

10.42 A

20.84 A

±2%

240 mV

250 W /500 W

90 /92%

PM500F-15A

28 V

0 A

8.93 A

17.86 A

±2%

280 mV

250 W /500 W

90 /92%

PM500F-16A

30 V

0 A

8.34 A

 16.67 A

±2%

300 mV

250 W /500 W

90 /92%

PM500F-17A

36 V

0 A

6.94 A

13.89 A

±2%

360 mV

250 W /500 W

90 /92%

PM500F-18A

48 V

0 A

5.21 A

10.42 A

±2%

480 mV

250 W /500 W

90 /92%

PM500F-19A

57 V

0 A

4.38 A

8.78 A

±2%

570 mV

250 W /500 W

90 /92%
