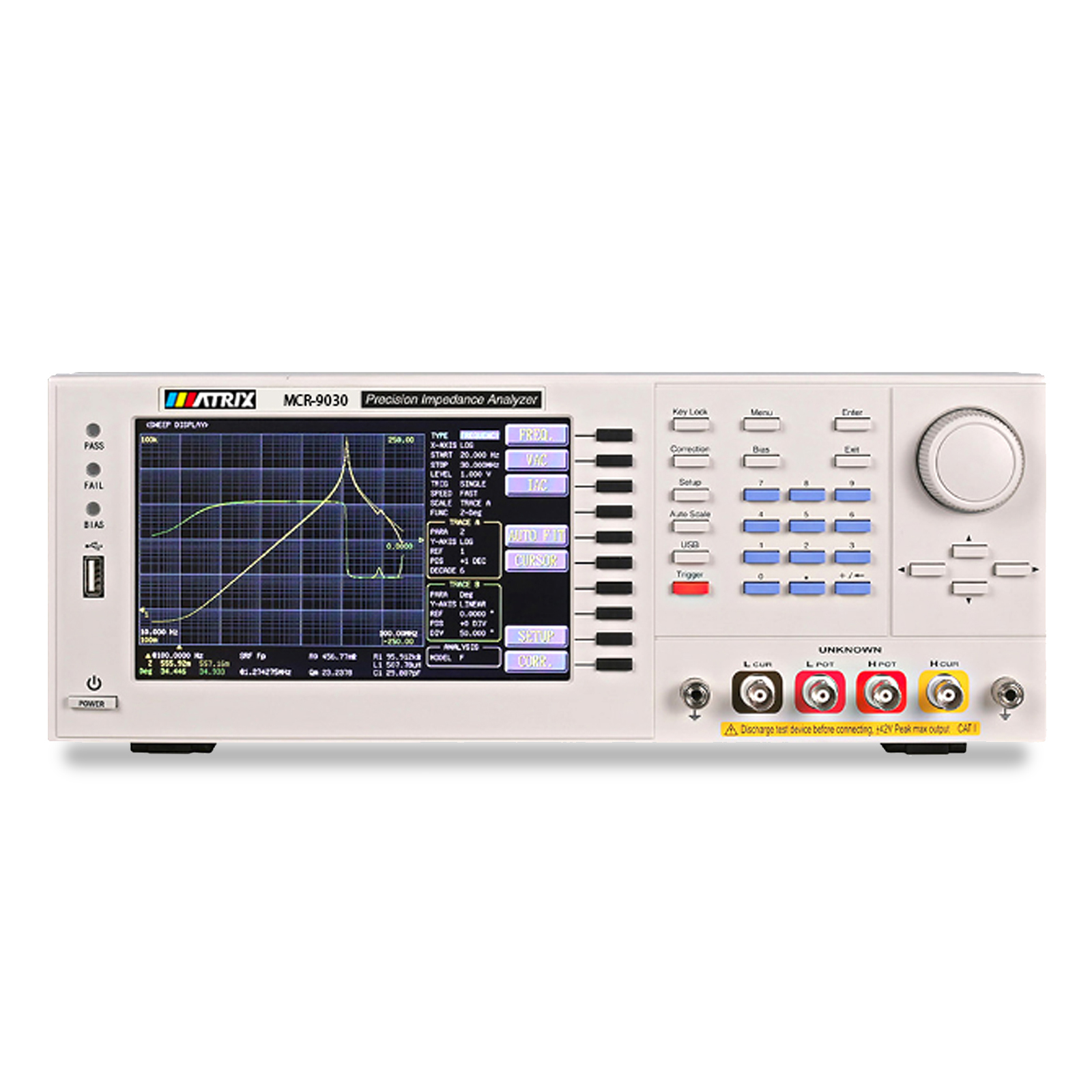

MATRIX MCR-9000 линейка измерителей LCR

MATRIX MCR-9005 линейка измерителей LCR

Подробнее

ЗАКАЗАТЬ

Под заказ

Наши менеджеры обязательно свяжутся с вами и уточнят условия заказа

Описание


Test Frequency	MCR-9005	10Hz ~ 5MHz
	MCR-9010	10Hz ~ 10MHz
	MCR-9020	10Hz ~ 20MHz
	MCR-9030	10Hz ~ 30MHz
	Minimum Resolution	100mHz, 6-bit Frequency Input
	Accuracy	7 ppm±100mHz
Basic Accuracy	± 0.05%
AC Measurement	Test Signal Voltage Level	10mV - 2Vrms
	Voltage Minimum Resolution	1mV
	Accuracy	ALC ON：6％ * Voltage ± 2mV
		ALC OFF：10％ * Voltage ± 2mV
	Test Signal Current Level	200µA - 20mArms
	Current Minimum Resolution	10µA
	Accuracy	ALC ON：6％ * Current ± 20µA
		ALC OFF：10％ * Current ± 20µA
DC Measurement	1V (fixed)
Test Time (The fastest)	< 3ms
Output Impedance	25Ω/100Ω, switchable (Nominal value)
Parameters	\|Z\|、\|Y\|、θ、X、R、G、B、L、D、Q、DCR、C、 Vdc-Idc、ESR、ε' ε"and μr' μr"
Measurement Mode	Meter mode, list mode
Measurement Circuit	Series/Parallel
Correction	Open Circuit/ Short Circuit/Load correction
List mode	50 groups of Multi-steps setting (Each group contains up to 15 steps)
BIN	9
Comparator	ABS、ΔABS、Δ%、OFF
Bulit-in Storge	100 sets LCR Meter setting documents, 50 sets list mode setting documents
USB Host Storge	LCR setting documents, list mode setting documents, BMP graphics
Interface	RS-232、GPIB、Handler、LAN、USB Host/Device
Power Supply	Voltage	90V ～ 264Vac
	Frequency	47Hz ~ 63Hz
Power Consumption	Low power consumption: Maximum 30W (Nominal value)
Display	7.0”TFT, 800x480 color screen
Environment	Temperature: 10℃ ～ 40℃ Humidity: ≦80%
Dimension (WHD)	336x147x340 mm
Weight	3 kg
