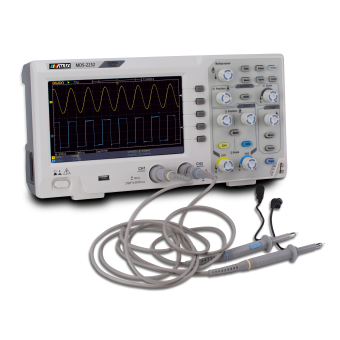

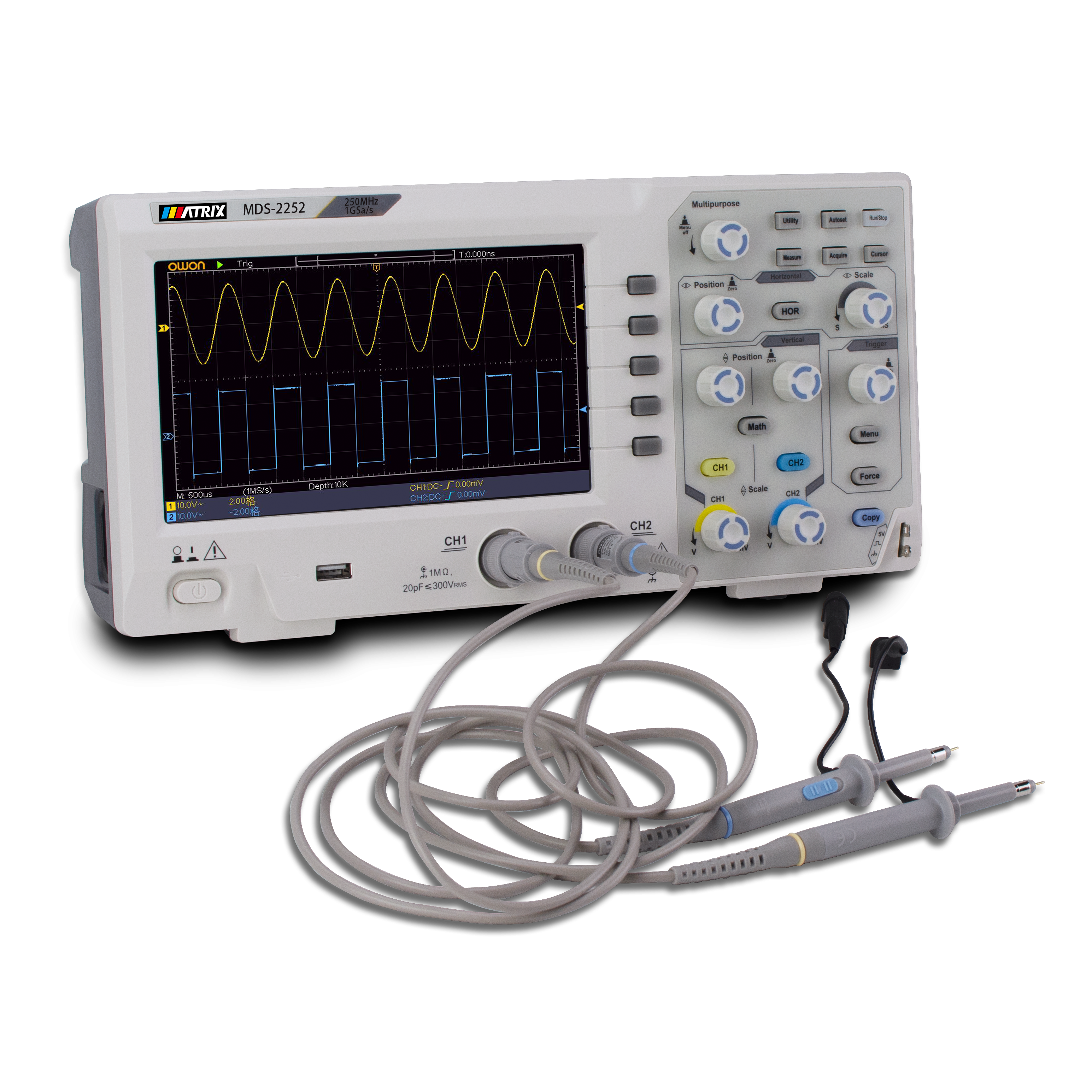

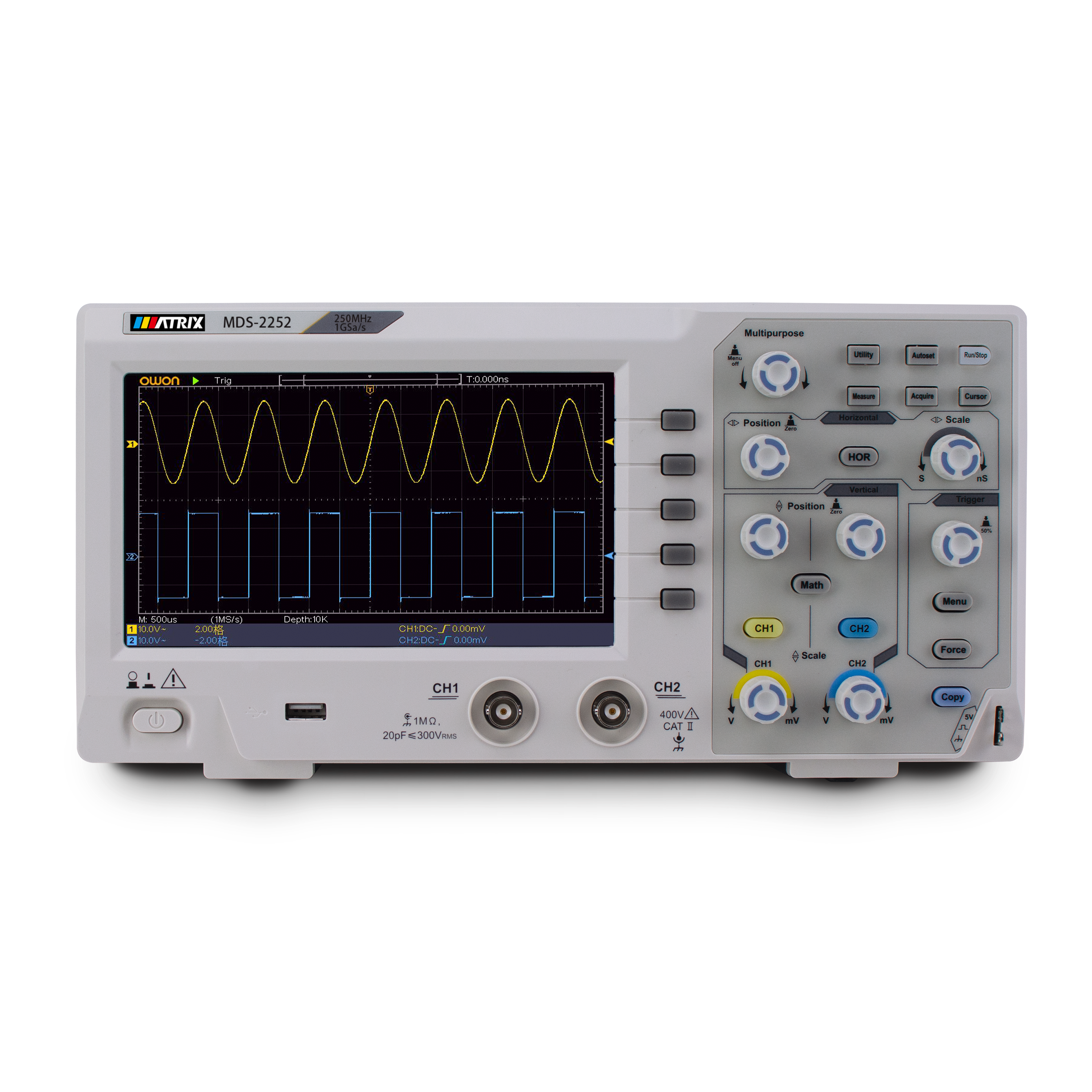

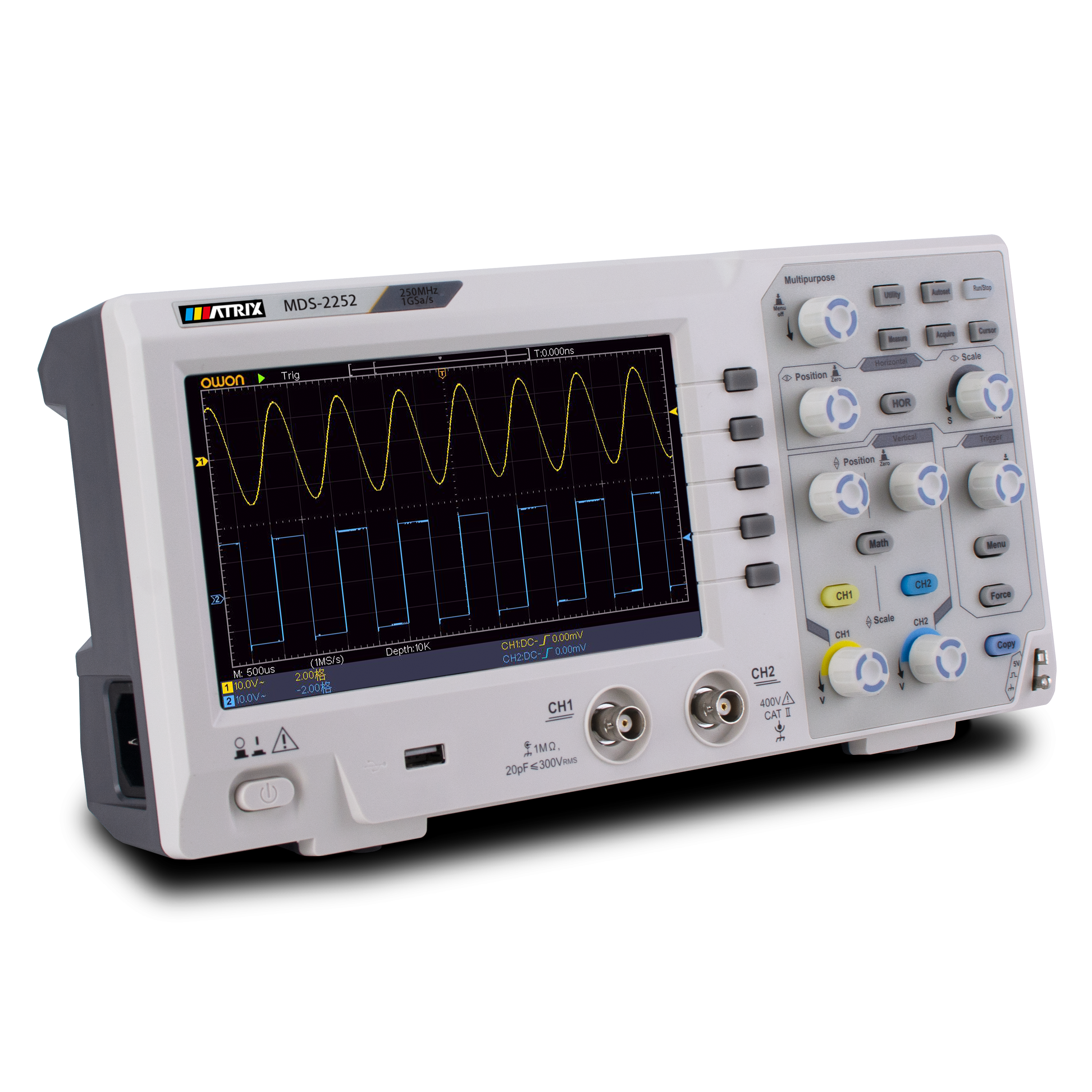

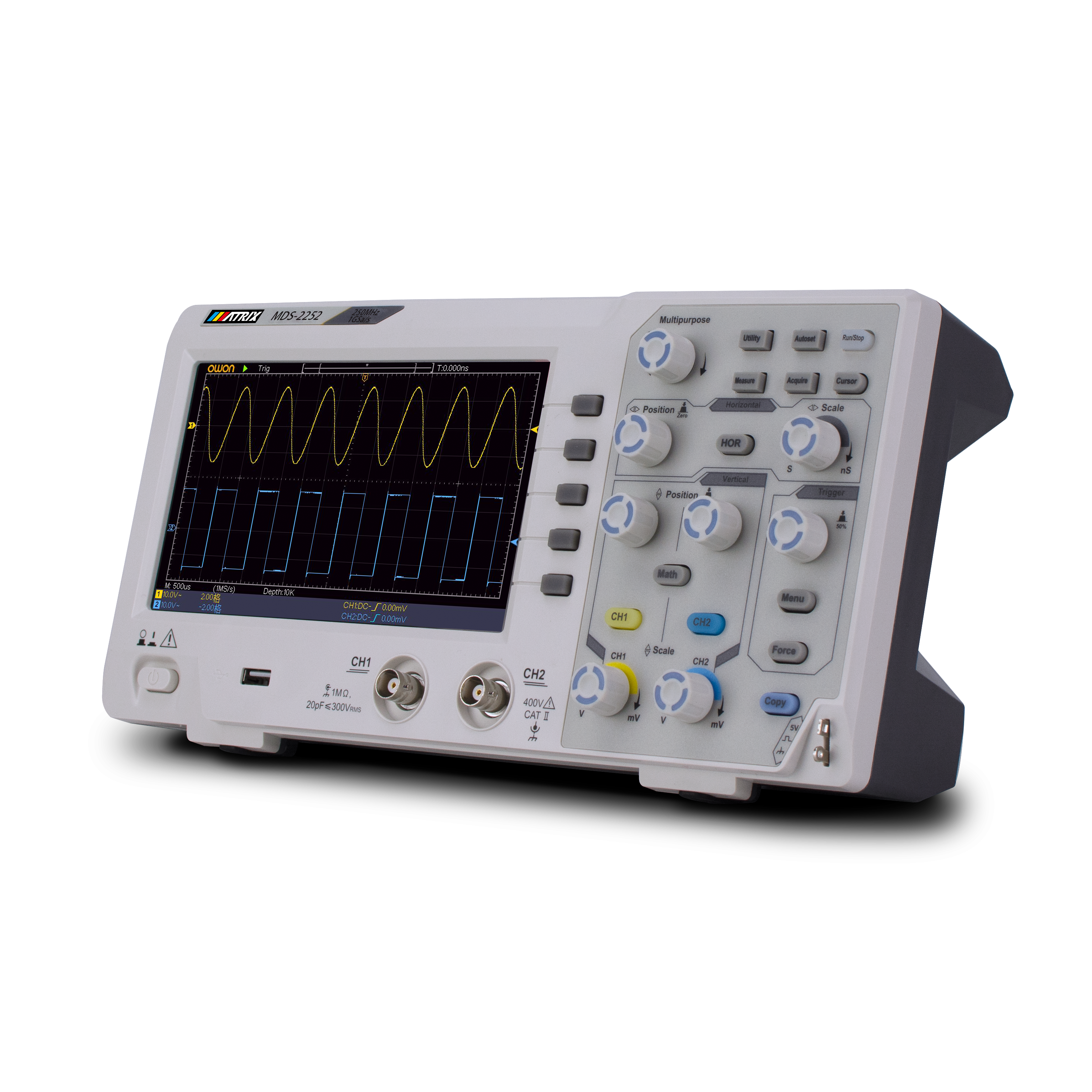

MATRIX MDS-2252 осциллограф

Подробнее

ЗАКАЗАТЬ

Под заказ

Наши менеджеры обязательно свяжутся с вами и уточнят условия заказа

Описание

Performance Characteristics	Instruction
Bandwidth	MDS2152		Up to 150 MHz
	MDS2252		Up to 250 MHz
Rise Time（at input, typical）	MDS2152		≤ 3.5 ns
	MDS2252		≤ 1.75 ns
Horizontal Scale	MDS2152 MDS2252		2 ns/div – 1000 s/div, step by 1 – 2 - 5
Sample rate (real time)	MDS2152 MDS2252		1 GS/s
Display	7" Colored LCD (Liquid Crystal Display),65536 colors, 800 x 480 pixels
Channel	2 channels
Max Record length	10K
Sampling rate / relay time accuracy	±100 ppm
Input coupling	DC, AC , Ground
Input impedance	1 MΩ±2%, in parallel with 20 pF±5 pF
Max. input voltage	400V (DC+AC, PK - PK)
DC Gain Accuracy	±3%
Vertical Sensitivity	5 mV/div – 5 V/div
Trigger type	Edge, Video
Trigger mode	Auto, Normal, Single
Line/field frequency (Video)	Support standard NTSC, PAL and SECAM broadcast systems
Automatic measurement	Period, Frequency, Mean, PK-PK, RMS, Max, Min, Top, Base, Amplitude, Overshoot, Preshoot, Rise Time, Fall Time, +PulseWidth, -PulseWidth, +Duty Cycle, -Duty Cycle, Delay A→B, Delay A→B, Cycle RMS, Cursor RMS, Screen Duty, Phase, +PulseCount, -PulseCount, RiseEdgeCnt, FallEdgeCnt, Area, and Cycle Area.
Waveform Math	＋, －, ×, ÷, FFT
Waveform storage	16 waveforms
Communication interface	USB 2.0, USB flash disk storage
Power supply	100 - 240 VACRMS，50/60 Hz，CATⅡ
Fuse	2 A, T class, 250 V
Mechanical Specifications
Dimension		301 mm× 152 mm×70 mm (LHW)
Weight		About 1.1 kg
